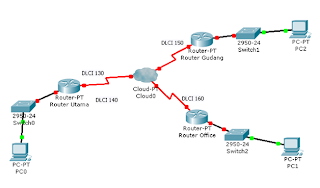

Configuration Frame Relay & PPP

Router Utama

interface Serial2/0

encapsulation frame-relay

no shut

!

interface Serial2/0.1 point-to-point

 ip address 3.1.3.1 255.255.255.0

 frame-relay interface-dlci 130

exit

!

interface Serial2/0.2 point-to-point

 ip address 3.1.4.1 255.255.255.0

 frame-relay interface-dlci 140

*********************************************************************************

Router Office

interface Serial2/0

 ip address 3.1.3.2 255.255.255.0

 encapsulation frame-relay

 frame-relay interface-dlci 150

no shut

exit

!

Router Gudang

interface Serial2/0

 ip address 3.1.4.2 255.255.255.0

 encapsulation frame-relay

 frame-relay interface-dlci 160

no shut

exit
